Diagnose AI System Failures

A symptom is what someone observes. A root cause is the condition that must change to prevent recurrence. Jumping directly from symptom to favorite fix is solutioneering, not diagnosis.

Use an Evidence Ladder

flowchart LR
    A[Observed symptom] --> B[Reproducible case]
    B --> C[Competing hypotheses]
    C --> D[Discriminating evidence]
    D --> E[Verified cause]
    E --> F[Smallest effective fix]
    F --> G[Regression evaluation]

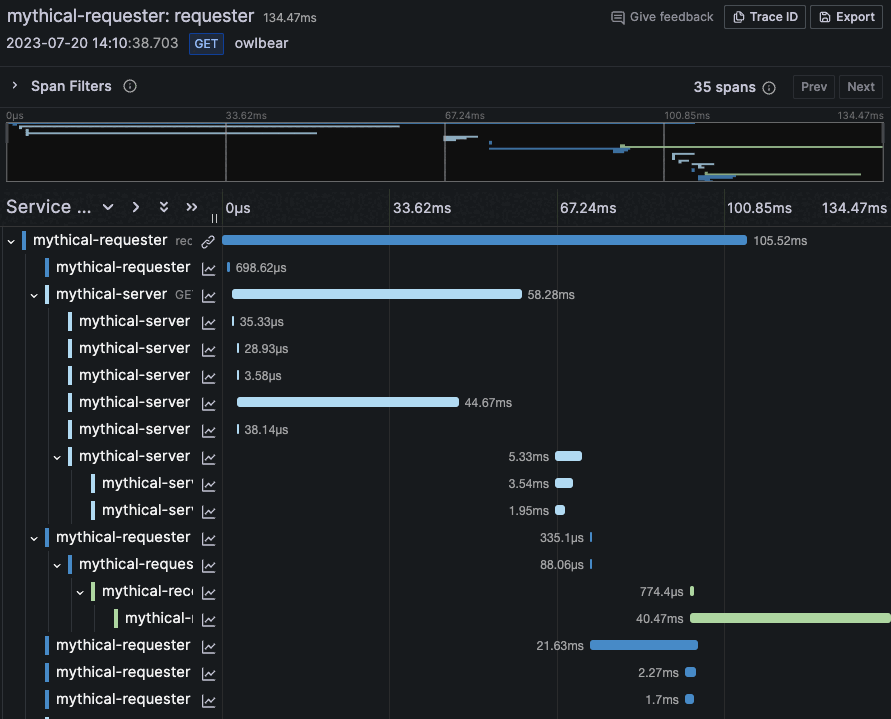

A trace view showing a request broken into timed spans

Source: Grafana Labs, Traces in Explore. A trace can reveal which component ran, failed, retried, or dominated end-to-end latency.

For every claim, label it:

Observed: directly visible in a user report, trace, log, test, or source.
Inferred: a plausible explanation consistent with current evidence.
Unknown: information needed before choosing confidently.
Verified: tested evidence distinguishes this cause from alternatives.

Symptom-to-Layer Map

Symptom	Plausible causes to distinguish	Useful evidence
Outdated answer	stale source, failed ingestion, duplicate versions, cache, weak date filter	source versions, ingestion status, retrieved chunks, cache age
Irrelevant answer	ambiguous query, poor chunking, weak retrieval, context crowding, model disregard	query, ranked passages, retrieval scores, final prompt
Forgotten context	state not stored, summary loss, wrong session, context truncation, intentional expiry	session ID, state snapshot, token use, retention policy
Inconsistent format	underspecified contract, randomness, model-version change, parser fallback	prompt version, model version, parameters, parse errors
Hallucinated claim	missing evidence, failed retrieval, unsupported synthesis, misleading source	retrieved evidence, citations, supported-claim evaluation
Slow response	retrieval, model latency, long context, sequential tools, retries, dependency outage	component timings, token counts, traces, timeout and retry logs
Privacy leak	bad authorization, cross-user state, overbroad retrieval, sensitive logs, unsafe tool output	identity, permissions, retrieved context, audit logs, data lineage
Quality decline	source drift, traffic shift, prompt/model change, evaluation blind spot	version history, cohort metrics, fixed evaluation set, change log

Ask for Evidence That Separates Hypotheses

Good evidence changes the ranking of possible causes. If answers are outdated, checking whether the current document exists in the source system does not tell you whether it reached the index. Inspect the ingestion record and the passages actually retrieved for a failing query.

Use the next-best-evidence question:

What is the smallest observation or test that would most change our diagnosis?

Examples include reproducing one failing request, comparing retrieved passages with the expected passage, removing conversation history, pinning the model version, or measuring component-level latency.

Fix the Cause and Protect Against Regression

A complete recommendation contains:

immediate containment for affected users;
a change linked to verified or strongly supported causes;
a regression test using the original failure;
monitoring that detects recurrence;
an owner, rollback condition, and unresolved risk.

Do not list “improve prompt, add RAG, fine-tune, and change model” as a package unless evidence shows each intervention is necessary. Multiple simultaneous changes make it difficult to learn which one worked.

Use an LLM as a Challenger

Give the LLM your map and evidence, then ask it to find alternatives:

Review this AI-system diagnosis as a skeptical architecture panel.
Separate observations from inferences. Identify at least three competing root
causes, the evidence that would distinguish them, and any proposed fix that is
not linked to evidence. Do not invent logs, architecture, users, or constraints.
Flag claims that require an engineer, system owner, or primary source.

Verify every consequential suggestion. A polished causal story is still only a hypothesis if the LLM cannot inspect the real system.

Check Your Understanding

Question: Latency increased after a prompt update. Does that prove the new prompt is the root cause?

Show solution

No. The timing is evidence worth investigating, but model load, retrieval, context size, tool retries, traffic mix, or another release may also explain the change. Compare component timings and versions under reproducible requests.
